Safe, reliable access at height

Suspended Platform

Name: Suspended Platform
Brand: Surya Engineering

Wire rope suspended platforms, working platforms and cradle systems for facade access.

Contact for Latest Price

💬 Send Enquiry 📞 Call: 09223446390

Available Variants

✓ Wire Rope Suspended Platform

✓ Working Platform

✓ Suspended Wire Rope Platform

✓ Suspended Cradle System

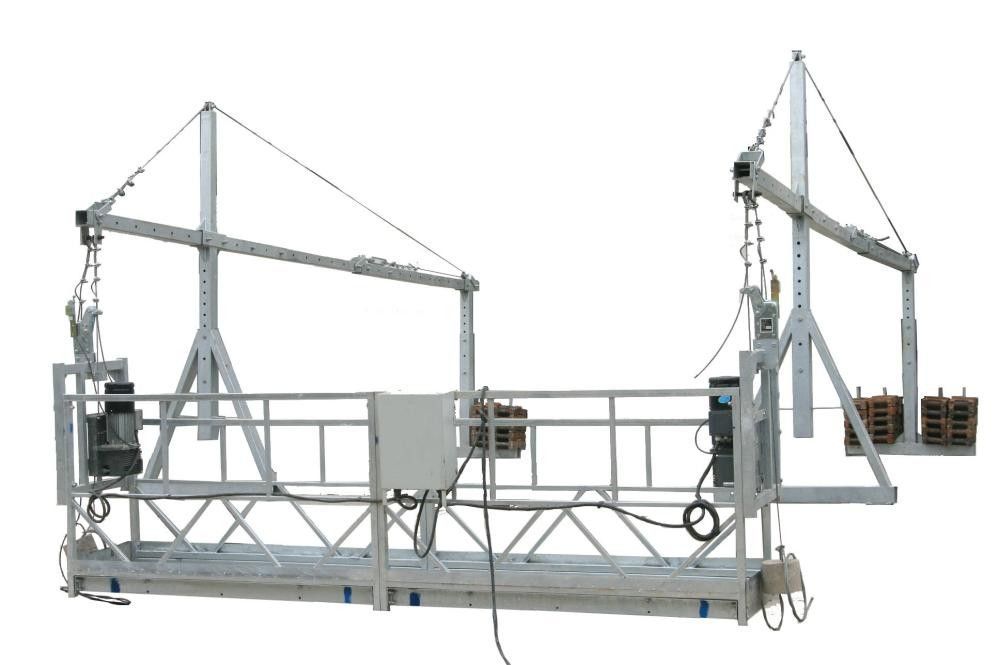

Our wire rope suspended platforms (gondolas/cradles) are designed for safe working at height during construction, facade cleaning, painting and maintenance. They conform to IS 16194 and EN 1808 standards, featuring galvanised wire ropes, aluminium alloy platforms, and electric hoists with safety locks.

Technical Details

Specifications

Product Specifications

Working Load Limit250 kg to 800 kg

Platform Length2m to 12m (modular)

Hoist Speed8-12 m/min

Wire Rope Diameter8mm to 10mm Galvanised

Standard ComplianceIS 16194, EN 1808

Power SupplySingle Phase / 3 Phase

Where It's Used

Applications

›High-rise building construction and painting
›Facade cleaning and maintenance
›Glass curtain wall installation
›Bridge inspection and repair
›Industrial chimney maintenance

Need a custom specification?

We manufacture to order. Contact our team with your requirements and we'll provide a tailored quote.

Send Enquiry WhatsApp

Suspended Platform

Available Variants

Specifications

Applications

Need a custom specification?
