Fast, Strong & Reliable Rebar Connections
High Speed MBT Rebar Coupler is a mechanical splicing system designed for fast and secure connection of reinforcing bars without threading.
Product Media
A High Speed MBT Coupler is a mechanical rebar connection system designed to join reinforcement bars quickly without requiring conventional bar-end threading or welding. It is useful when a construction project needs fast installation, reliable mechanical connection, and less reinforcement congestion.
MBT couplers use a steel coupling body and locking bolts to grip the reinforcement bars. Because the bars generally do not need to be threaded, the system can be useful when working with already-positioned reinforcement or where bar rotation and threading are difficult.
For Surya Engineering, the buyer-focused message should be simple: choose the correct coupler size, match it to the rebar, and install it using the specified tightening procedure.

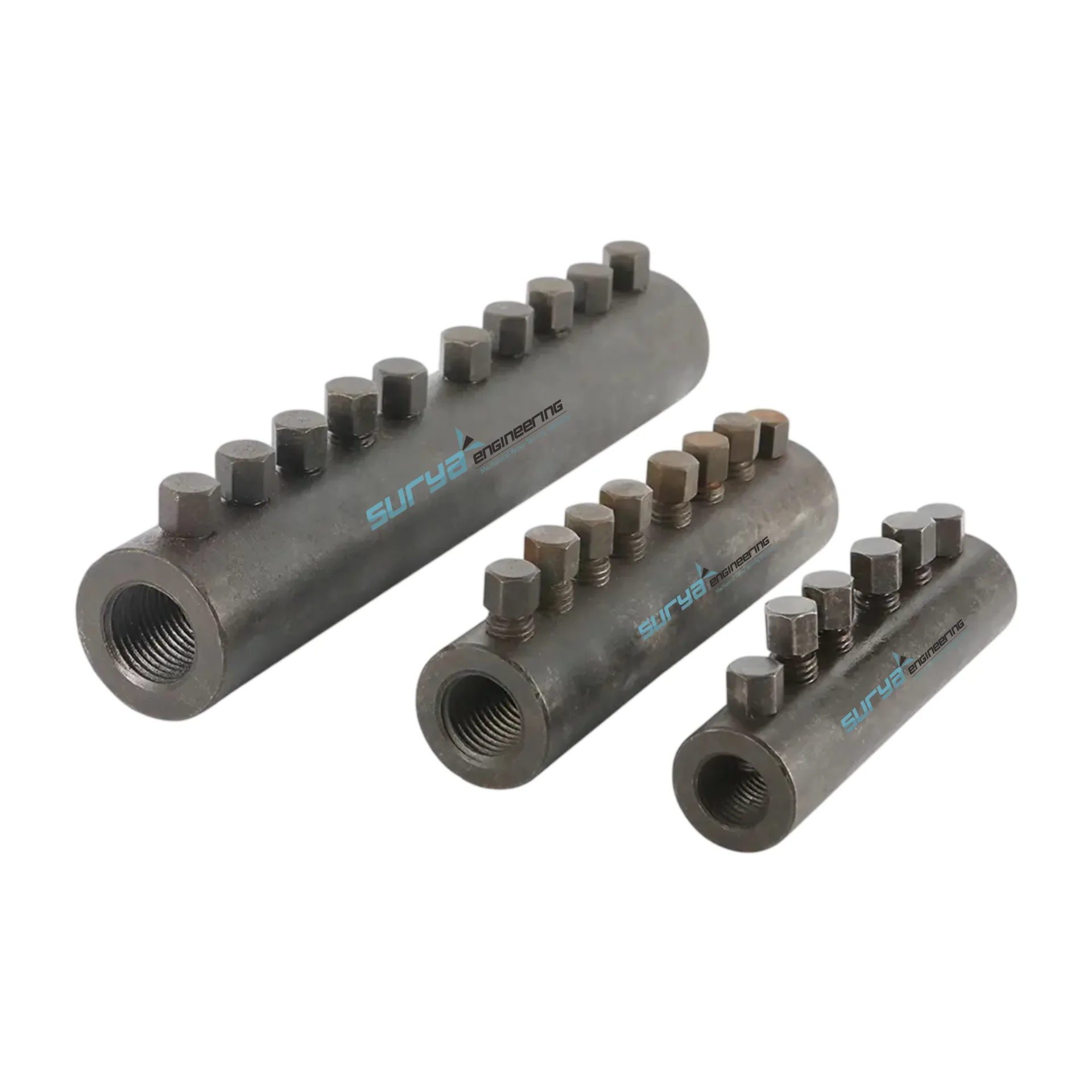

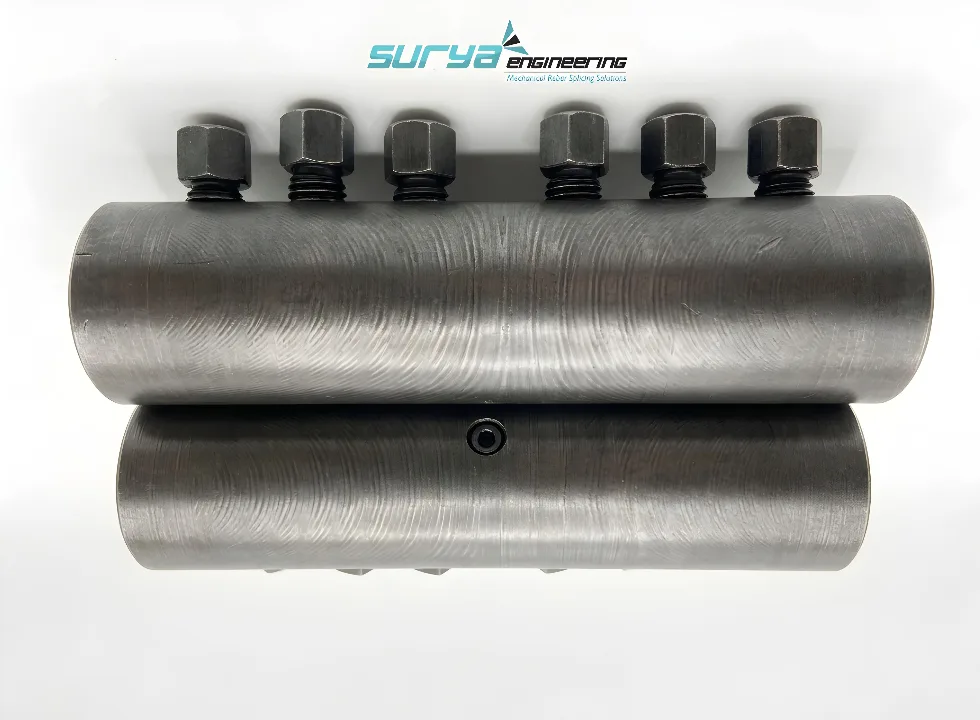

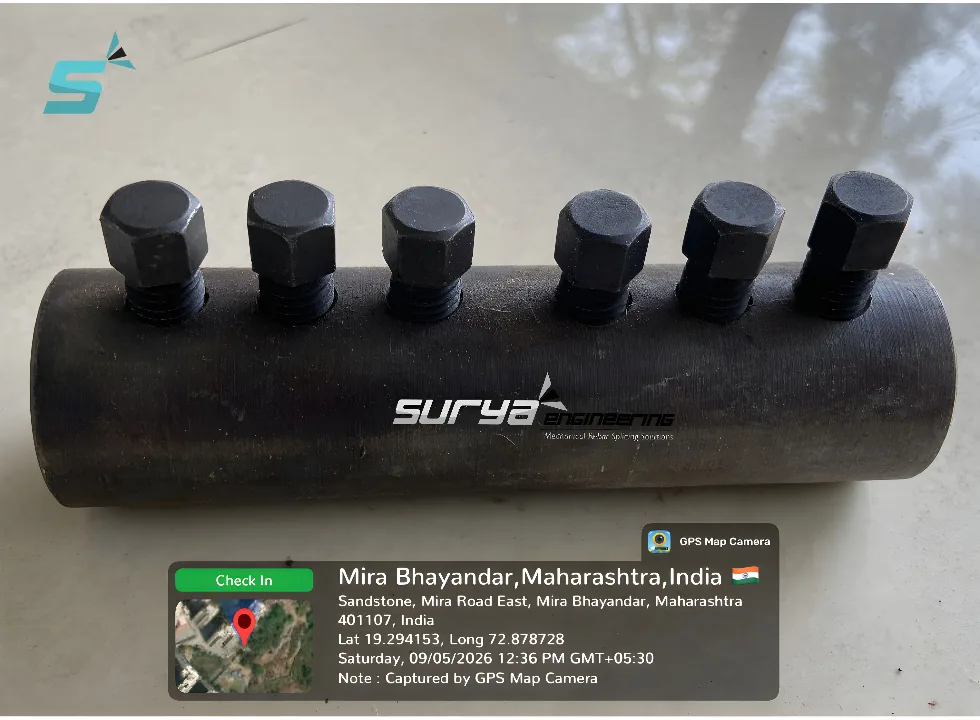

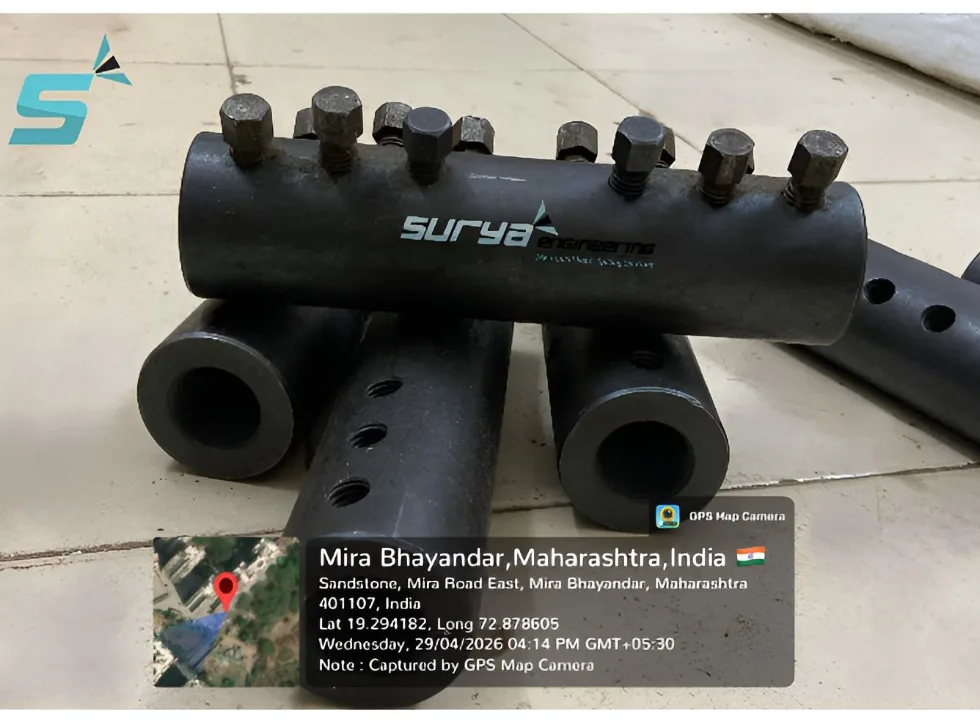

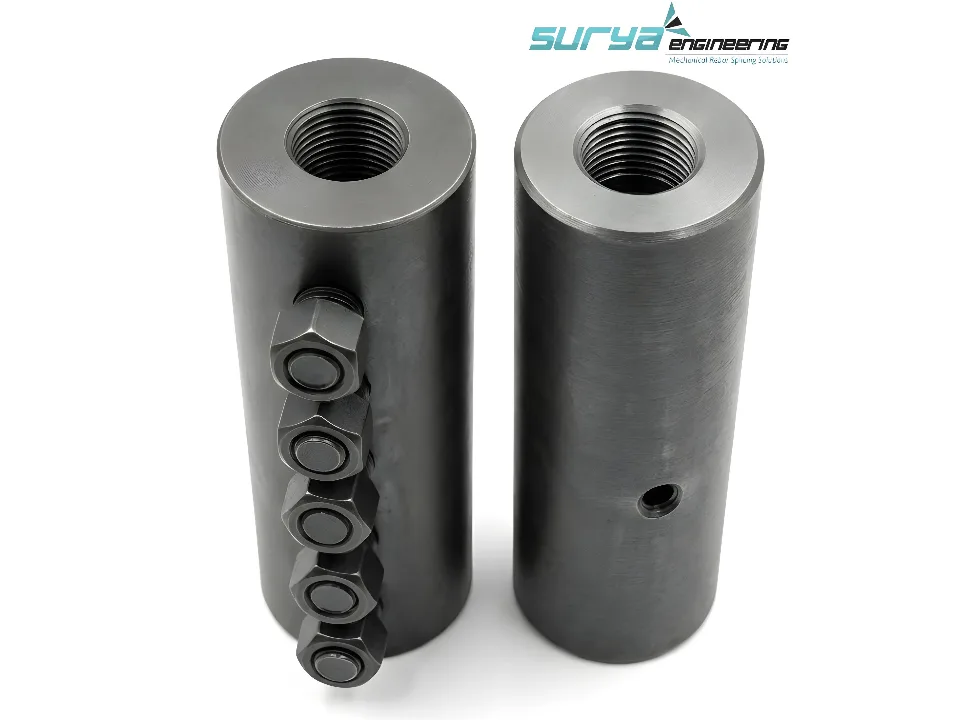

A High Speed MBT Coupler is a bolted mechanical coupler used to connect two reinforcement bars. Instead of creating threads on the ends of the bars, the connection is made by placing the bars inside the coupler and tightening its locking bolts.
This makes the system different from a conventional threaded rebar coupler.
In a typical connection:
Rebar + Rebar → MBT Coupler → Locking Bolts → Mechanical Splice
The exact bolt arrangement and installation procedure depend on the coupler design and bar diameter.
The main advantage is the installation process.
With a suitable MBT system, the reinforcement bars generally do not require:
This can make the connection particularly useful where reinforcement is already fixed in position or where conventional threading is inconvenient.
MBT systems are designed to connect bars without the conventional threading process used by threaded couplers.
Locking bolts provide a practical mechanical connection method, which can simplify installation compared with processes requiring bar-end threading.
Because the connection is made by securing the bars inside the coupler, it can be suitable for applications where rotating reinforcement bars is difficult.
Mechanical splicing can provide an alternative to overlapping bars where the structural design permits it, helping reduce congestion in heavily reinforced areas.
Bolted mechanical couplers can be useful where reinforcement needs to be extended or connected to existing reinforcement and conventional threading is difficult.
MBT couplers are used in applications including buildings, bridges, metro projects, tunnels, industrial structures, and other infrastructure work.
This is one of the questions buyers usually want answered.
| High Speed MBT Coupler | Threaded Rebar Coupler |
|---|---|
| Bolted mechanical connection | Threaded mechanical connection |
| Normally no bar threading | Requires compatible threaded bar ends |
| Useful where bar rotation is difficult | May require a threading process |
| Uses locking bolts | Uses threaded engagement |
| Practical for repair/retrofit applications | Common for prepared threaded reinforcement |
| Installation depends on bolt-tightening procedure | Installation depends on thread and coupler system |
MBT couplers are intended for use with suitable reinforcement bars within the manufacturer's specified diameter and material range.
Surya Engineering currently publishes MBT coupler configurations covering 12 mm to 40 mm rebar, while individual product listings show sizes such as 16, 20, 25, 32 and 40 mm.
Before ordering, confirm:
Rebar diameter + rebar grade + coupler type + project specification.
Proper installation is critical to the performance of the mechanical splice.
Make sure the reinforcement bars meet the specified diameter and condition.
Remove concrete, dirt, rust, or other material that could interfere with proper bar insertion.
Insert both bars into the coupler to the required depth.
Make sure the locking bolts are correctly positioned according to the coupler design.
Use the specified tool and tightening sequence. Some systems use shear-off bolts to indicate the required installation condition.
Check bar insertion, bolt condition, coupler position, and other project-specific requirements.
For projects requiring quality documentation, record the splice according to the approved inspection procedure.
For projects in India that specify BIS requirements, buyers should pay close attention to the applicable reinforcement-coupler standard and the supplier's actual certification scope.
Surya Engineering's current published MBT product information references IS 16172:2026 for its coupler offerings.
Imagine reinforcement already installed inside a congested column or wall. Rotating the bar to install a conventional threaded coupler may be impractical.
An MBT coupler can provide an alternative because the connection is made by inserting and mechanically locking the bars, rather than requiring the complete bar to rotate during installation.
At Surya Engineering, we manufacture and supply MBT Mechanical Bolted Couplers for reinforcement bar connection applications. Our published product information lists high-strength steel construction, mechanical bolting, anti-corrosion/protective finishes, and sizes covering 12–40 mm on the main Mechanical Bolt Coupler page.
For buyers, we can focus on the actual project requirement:
This makes it easier to select the correct MBT coupler instead of simply ordering a generic “rebar coupler.”
Surya Engineering supplies High Speed MBT Couplers / Mechanical Bolted Rebar Couplers for construction and infrastructure applications in India.
Our published product range includes MBT couplers for 12–40 mm reinforcement bars, with individual configurations available for different rebar sizes.
If you are looking for a High Speed MBT Coupler supplier in India, provide your rebar diameter, grade, quantity, project application, certification requirement, and delivery location for a more accurate quotation.
