MBT Rebar Coupler

MBT Rebar Coupler

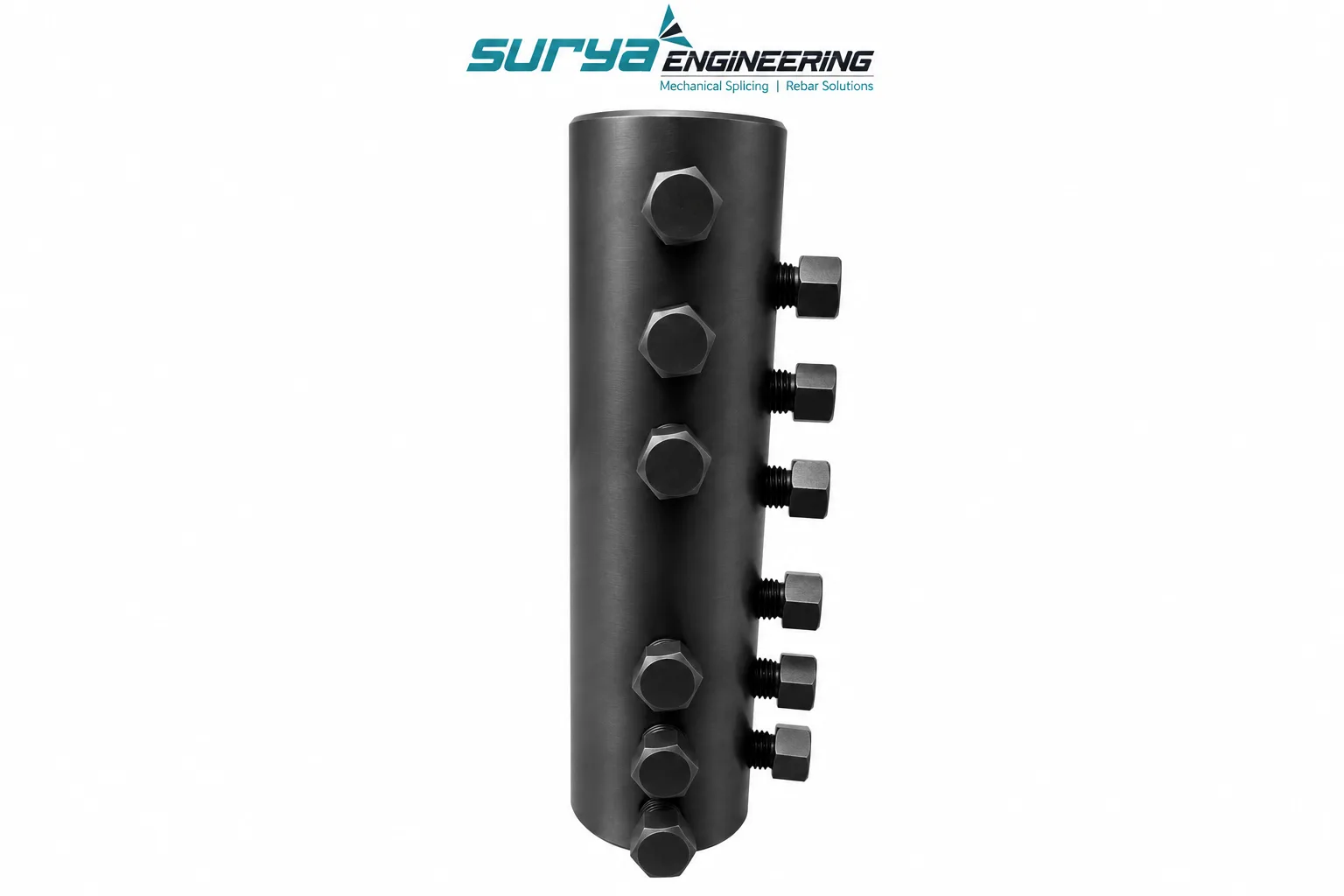

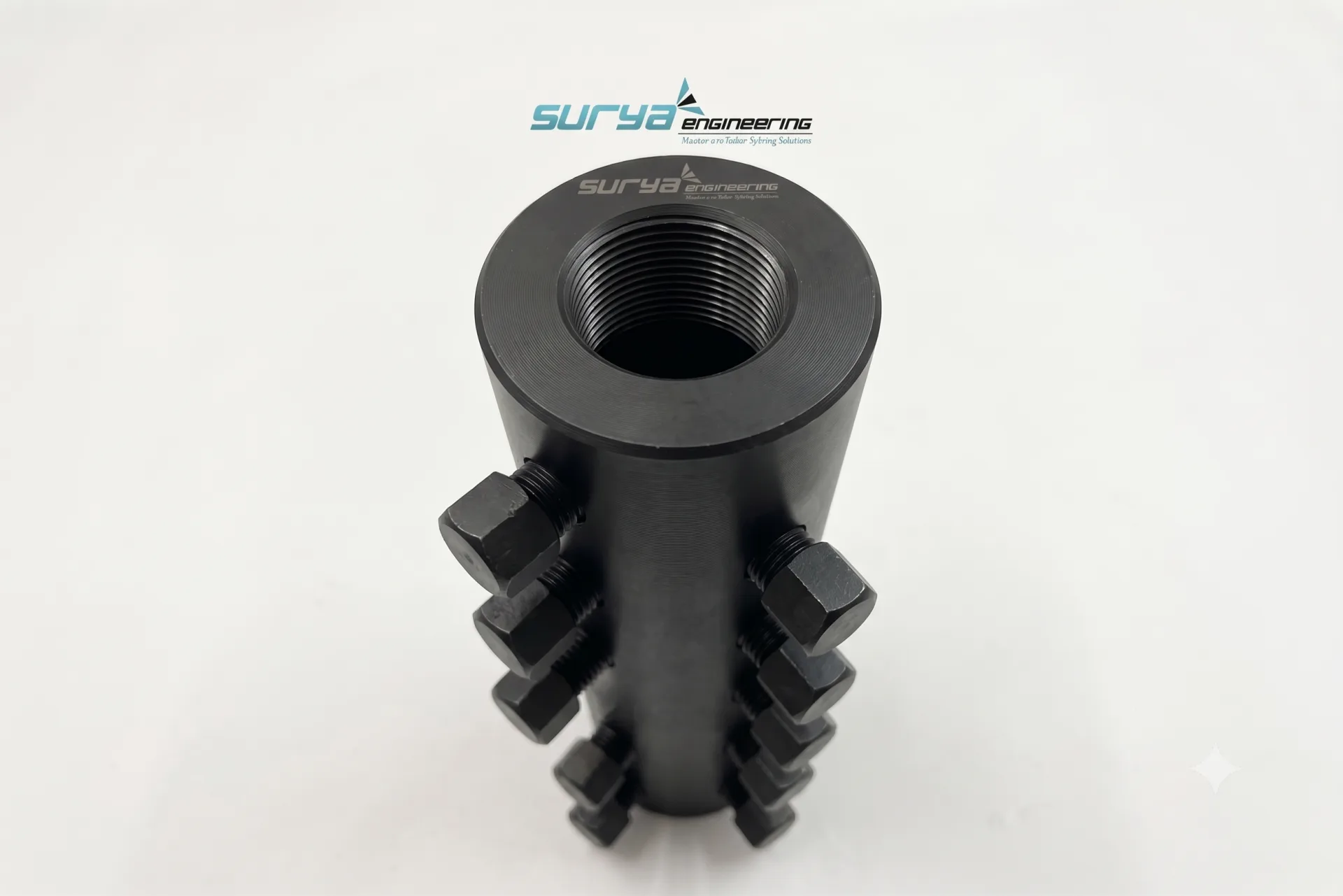

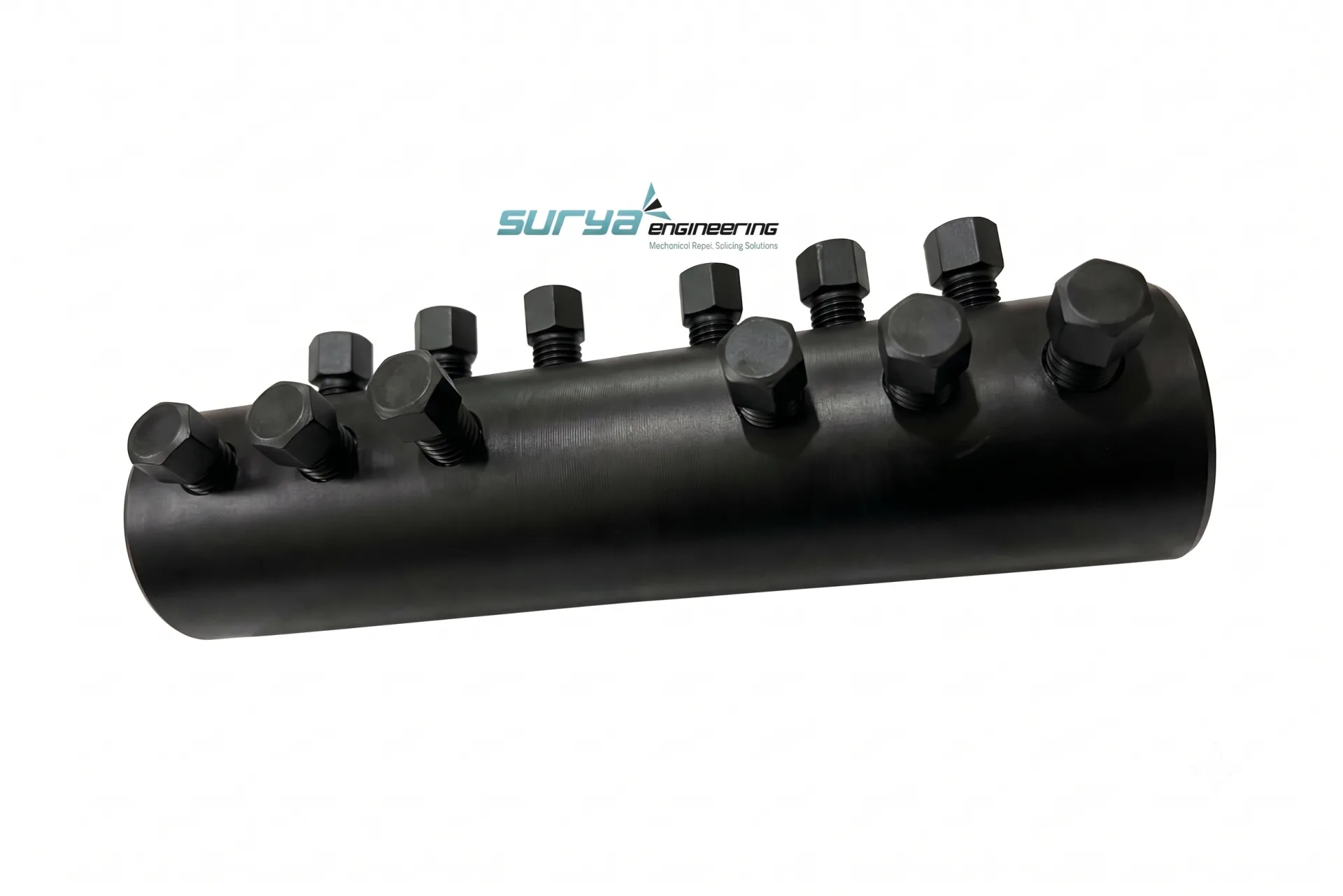

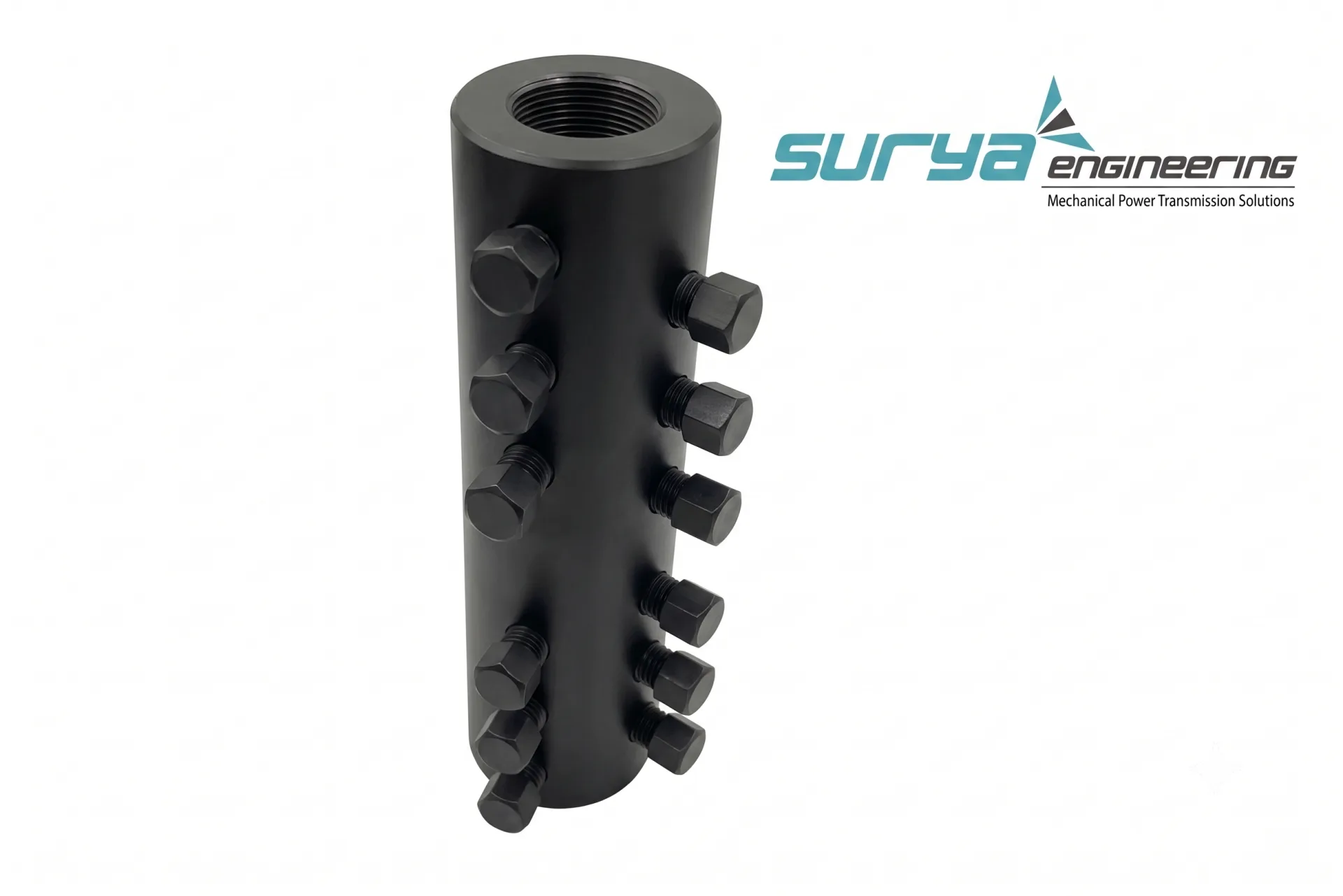

MBT Rebar Coupler is a Mechanical Bolted Type coupler designed to join reinforcement bars securely without conventional bar-end threading or welding. It uses a mechanical locking system with high-strength bolts to grip and connect reinforcement bars, making it suitable for construction projects where fast installation and reduced reinforcement congestion are important.

MBT couplers are particularly useful where reinforcement bars cannot be easily rotated or where conventional threaded couplers are difficult to install. The bars are inserted into the coupler and secured using the specified locking bolts and installation procedure.

How Does an MBT Rebar Coupler Work?

1. Insertion: The two reinforcing bars are cleaned and inserted into opposite ends of the coupler sleeve until they meet the internal center stop.
2. Tightening: High-tensile lock-shear bolts are tightened using a standard wrench or an impact tool.
3. Gripping: As the bolts tighten, their conical ends embed into the rebar while forcing the rebar to push against the coupler's internal wall, causing the reversed teeth to bite into the steel.

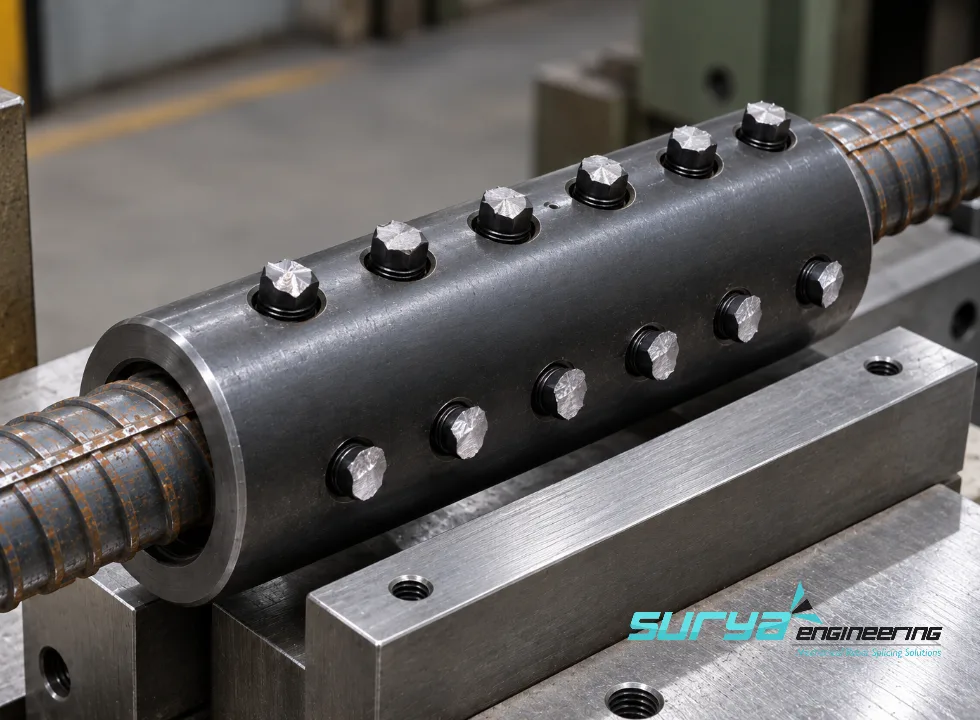

4. Shear-Off: When the predetermined tightening torque is achieved, the heads of the bolts cleanly shear off. This leaves the remaining bolt flush or slightly proud, providing an instant visual check that the connection has been installed perfectly.

Key Features of MBT Rebar Coupler

• Mechanical bolted connection for reinforcement bars
• No conventional rebar threading required
• No welding required for the mechanical connection
• Suitable where reinforcement bar rotation is difficult
• Fast and practical installation
• Helps reduce reinforcement congestion compared with conventional lap splicing
• Suitable for various reinforcement bar diameters
• Suitable for RCC and infrastructure construction
• Available in 12 mm to 40 mm configurations

Why Choose MBT Coupler?

• No Threading, No Grouting: Direct installation on cut rebars - ideal for repair and retrofit
• Fast Installation: Only needs standard torque wrench, no skilled labour or threading machine
• Full Strength Connection: Exceeds 100% of parent bar strength
• All Diameters: Available for 16mm, 20mm, 25mm, 32mm, 40mm
• Perfect for Congested Areas: Compact design for column and beam joints
• Works with Any Grade: Compatible with Fe 500D, Fe 550D, Fe 600

• ---

  Comparison: MBT Coupler vs. Traditional Splicing Methods

• Feature	MBT Bolted Coupler	Threaded Coupler	Traditional Lap Splicing
  Rebar End Preparation	None (Raw cut only)	Requires thread cutting/rolling	None
  Bar Rotation	Not required	Required (unless using position coupler)	Not required
  Installation Tools	Standard impact wrench/torque tool	Threading machines & wrenches	Tying wire & pliers
  Steel Consumption	Very low (End-to-end)	Very low (End-to-end)	High (Requires long overlaps)
  Best Used For	Retrofits, non-rotatable bars, fix-ups	High-volume new construction	Low-stress zones, standard slabs

  ---

  Thread Type

  Parameter	MBT Rebar Coupler
  Thread Type	Threadless Mechanical Connection
  Connection Type	Mechanical Bolted / Shear-Bolting
  Bar-End Threading	Not Required
  Welding	Not Required
  Locking Method	Mechanical Locking Bolts
  Installation	Bolt Tightening as per Manufacturer's Procedure
  Suitable For	TMT / Reinforcement Bars
  Application	Mechanical Splicing of Reinforcement Bars

  ---

  MBT Rebar Coupler Installation Process

  Step 1: Prepare the Reinforcement Bars

  Cut the reinforcement bars to the required length and ensure the bar ends are reasonably clean and free from excessive mud, oil, loose scale or other material that could interfere with proper installation.

  Step 2: Position the Coupler

  Place the MBT coupler over the ends of the two reinforcement bars to be joined. Ensure that both bars are correctly aligned with the coupler.

  Step 3: Insert the Reinforcement Bars

  Insert the reinforcement bars into the coupler to the required insertion depth specified by the manufacturer. Correct bar insertion is essential for achieving the required mechanical connection.

  Step 4: Check Alignment and Insertion

  Before tightening, verify that both bars are properly positioned and aligned inside the coupler. Confirm the required insertion marks or positioning requirements where applicable.

  Step 5: Tighten the Locking Bolts

  Tighten the mechanical locking/shear bolts using the specified installation sequence and tightening procedure. For shear-bolt designs, tighten the bolts until the specified shear condition is achieved.

  Step 6: Inspect the Completed Connection

  Visually inspect the completed connection to ensure that the bars are correctly positioned and the locking bolts have been installed according to the specified procedure.

  Step 7: Final Quality Check

  Verify the coupler size, reinforcement bar size, bar insertion, alignment and bolt installation before the connected reinforcement is placed into the concrete structure.

  ---

  Key Advantages

  • Threadless mechanical connection
  • No conventional bar threading
  • No welding required
  • Fast and practical installation
  • Suitable where bar rotation is restricted
  • Helps reduce reinforcement congestion
  • Suitable for applicable TMT bar sizes
  • Useful for RCC and infrastructure projects
  • Easy visual installation inspection
  • Mechanical end-to-end reinforcement connection

  ---

  MBT Rebar Coupler – FAQs

  1. What is an MBT Rebar Coupler?

  An MBT Rebar Coupler is a Mechanical Bolted Type rebar coupler used to join two reinforcement bars mechanically. It uses a locking-bolt system instead of conventional bar-end threading.

  2. Does an MBT Rebar Coupler require threading?

  No. An MBT coupler is designed as a threadless mechanical connection, so conventional threading of the reinforcement bar ends is not required.

  3. What sizes of MBT Rebar Couplers are available?

  Surya Engineering can offer MBT Rebar Couplers in different reinforcement bar sizes. If your current product range is 12 mm to 40 mm, the available sizes can include 12, 16, 20, 25, 28, 32, 36 and 40 mm, subject to the actual product specification.

  4. Does an MBT Rebar Coupler require welding?

  No. The connection is made mechanically using the coupler and locking bolts, so welding is not required for the mechanical splice.

  5. What tools are required for MBT installation?
  Only a standard torque wrench or ratchet wrench. No rebar threading machine, no coupler threading gauge, no electricity needed.

  6. Can MBT Rebar Couplers be used for large-diameter reinforcement bars?

  Yes, MBT-type couplers are available for different reinforcement bar diameters. The correct coupler must be selected according to the bar diameter, reinforcement grade, coupler specification and project requirements.

  7. How do I select the correct MBT Rebar Coupler?

  Select the coupler based on the reinforcement bar diameter, bar grade, required mechanical performance, project specifications and applicable certification/test requirements. Always verify compatibility before installation.
