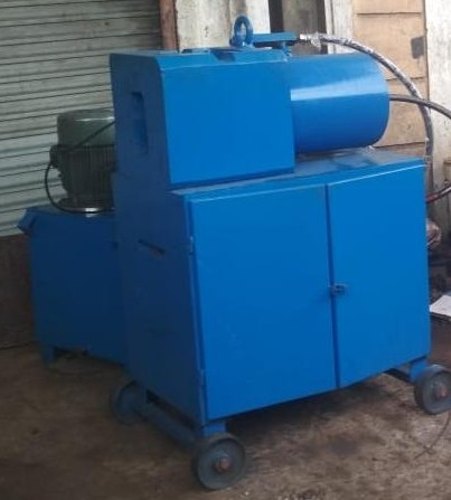

Rebar Cold Forging Machine

Rebar Cold Forging Machine

Rebar Cold Forging Machine is an industrial rebar processing machine designed for cold upsetting, pressure forging and preparation of reinforcement bar ends used in mechanical rebar splicing applications.

The machine processes the end portion of TMT reinforcement bars by applying controlled forging pressure to increase and shape the bar-end diameter without heating the reinforcement bar. This creates a suitable enlarged bar end for subsequent machining or roll-threading, depending on the selected coupler system and machine configuration.

Cold forging is an important process in the production of threaded mechanical rebar connections because it can prepare the reinforcement bar end while maintaining a controlled and repeatable geometry. The machine is designed for efficient production of coupler-ready rebar ends with consistent processing.

The Rebar Cold Forging Machine can be used by rebar coupler manufacturers, reinforcement fabricators, steel processing companies and construction-related production facilities requiring mechanical rebar connection preparation.

Why Use a Rebar Cold Forging Machine?

A Rebar Cold Forging Machine is used to prepare TMT reinforcement bar ends for mechanical rebar coupler applications through cold upsetting and controlled pressure forging, without heating the bar end.

Key Reasons to Use a Cold Forging Machine

1. No Heating Required

2. Creates an Enlarged Bar End

3. Suitable for Mechanical Coupler Production

4. Consistent Bar-End Preparation

5. Faster Production

6. Supports Roll Threading

7. Less Manual Work

8. Suitable for Rebar Coupler Manufacturers

Types / Variants

• Hydraulic Rebar Cold Forging Machine
• Mechanical Rebar Cold Forging Machine
• TMT Rebar End Forging Machine
• Rebar End Upsetting Machine
• Rebar Cold Forging & Threading System

Sizes / Capacity

• Bar Diameter Range: 16mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm, 40mm
• Enlarged Dia After Forging: +4mm to +6mm over parent bar
• Forging Length: 40mm to 90mm adjustable
• Machine Capacity: 40 Ton to 60 Ton hydraulic force

Technical Specifications of Rebar Cold Forging Machine

Quality Control & Testing of Rebar Cold Forging Machine

Surya Engineering machines undergo quality inspection and functional testing to verify machine performance, forging consistency, structural stability and operational reliability before dispatch.

Installation / Operation

The installation and operation procedure typically involves the following steps:

1. Preparation: Connect the power cord and ground wire as required. Ensure the coolant tank is filled with soluble coolant (oil-based coolant is strictly prohibited).

2. Setup: Install the appropriate mold and clamping dies for the rebar diameter to be processed. Reset the stroke limiting bracket and adjust the travel limit screw so the stroke is controlled (e.g., within 15mm).

3. Alignment: Insert the rebar into the machine, ensuring it is properly aligned with the mold center hole and secured with the workpiece bracket to prevent it from loosening or the machine from tipping.

4. Forging: The high-pressure oil pump activates, pushing the moving die forward. The steel clip automatically clamps the rebar, and the pier head impacts the end of the steel bar for upsetting.

5. Completion: Once the forging cycle is complete, the rebar end is enlarged and ready for the threading process.

Advantages

• 100% Bar Strength Guaranteed: Prevents thread cross-sectional area loss, ensuring failure occurs in the parent rebar, not at the joint.
• Cold Process (No Heat Loss): Operates at ambient temperature—does not weaken steel metallurgy, change rebar temper, or release harmful fumes.
• High Operational Speed: Quick cycle time of 10–15 seconds per bar end maximizes daily fabrication yard output.
• Heavy-Duty Durability: Hardened tool steel dies offer long service life with minimal maintenance down-time.
• User-Friendly Operation: Simple electric foot-pedal control allows single-operator use with minimal training.

Standards

• Machine Safety: CE marked hydraulics, ISO 9001:2015 manufacturing
• Forged Bar Performance: Complies with IS 16172:2023 for enlarged end splice
• Threading Compliance: Thread profile as per IS 16172 Annexure and ACI 318
• Electrical: ISI marked motor and control panel as per IS 325

• ---

• Why Choose Surya Engineering for Rebar Cold Forging Machines?

• Surya Engineering provides rebar processing machinery designed for accurate and efficient TMT bar end preparation for mechanical rebar splicing applications. Our machines are developed with a focus on reliable operation, consistent processing and practical production requirements.

• ---

• FAQ – Rebar Cold Forging Machine

• 1. What is a Rebar Cold Forging Machine?

• A Rebar Cold Forging Machine is used to upset and forge the end portion of a TMT reinforcement bar at ambient temperature, creating the required bar-end geometry for mechanical rebar connection applications.

• 2. Why is cold forging used for rebar?

• Cold forging is used to process the rebar end without conventional heating. It provides a controlled machine-based method for forming the enlarged bar end required by certain mechanical rebar splicing systems.

• 3. Does the machine heat the rebar?

• No. Cold forging is performed without conventional heating of the rebar end.

• 4. What is the purpose of rebar end upsetting?

• Rebar end upsetting increases the diameter of a selected portion of the bar end and prepares it for subsequent machining, such as roll threading, where required by the coupler system.

• 5. Can the forged rebar end be threaded?

• Yes, where the mechanical coupler system requires threading, the forged bar end can be prepared for subsequent roll threading according to the required thread specification.
